Description

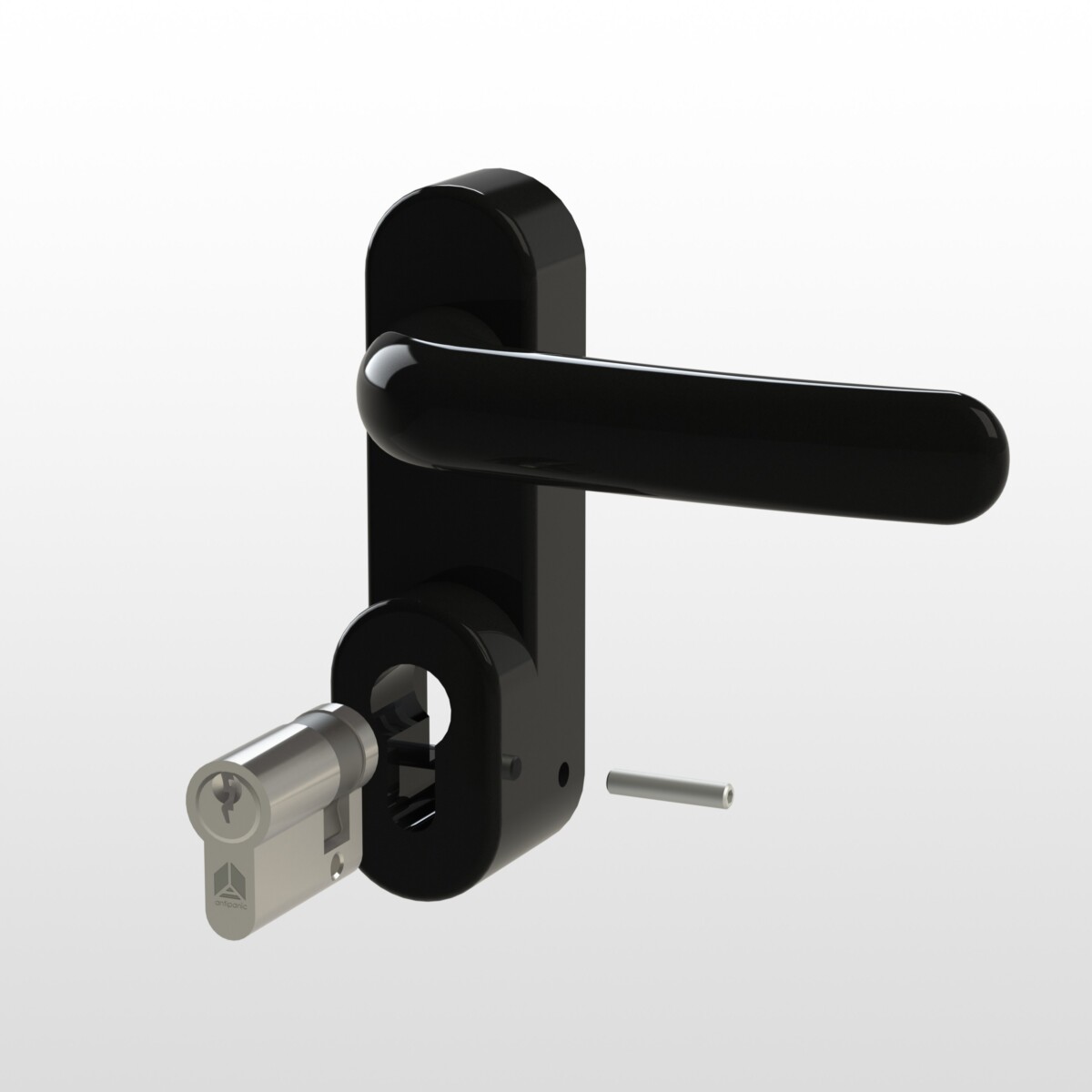

Strand Hardware easy cylinder outside access devices for use with Strand Modular touch bars, push bars and push pads
The easy cylinder version means that the cylinder can be replaced without having to remove the panic device from the door, you simply turn the key and remove a small screw from the side of the device which allows the cylinder to be removed.
This outside access device also comes with a free movement handle – the handle moves even when in the locked position for increased durability.
- Free-motion Lever Operated
- The internal panic or emergency exit hardware always overrides the outside locking status to allow safe egress
- Supplied complete with 40mm Euro Profile half cylinder
- The device bolts through the door and allows the outside access device and the internal panic mechanism to bolt together securely
- The standard spindle supplied suits doors up to 100mm thick and can be cut to size required.
- Selectable at installation either standard operation or key retaining (Key retaining option – key can only be withdrawn once the unit is re-locked! Ideal for scenario where key holder gains access and the door needs to be re-secured immediately after use)
- The following finishes available. PH365-03-20 Silver (EPS) 20, PH365-03-01 Black (EPB) 01, PH365-03-25 White (EPW) 25 & PH365-03-44 Satin Stainless Plated (SSSP) 44. Other plated finishes and RAL colours are available upon request, please enquire for pricing.
