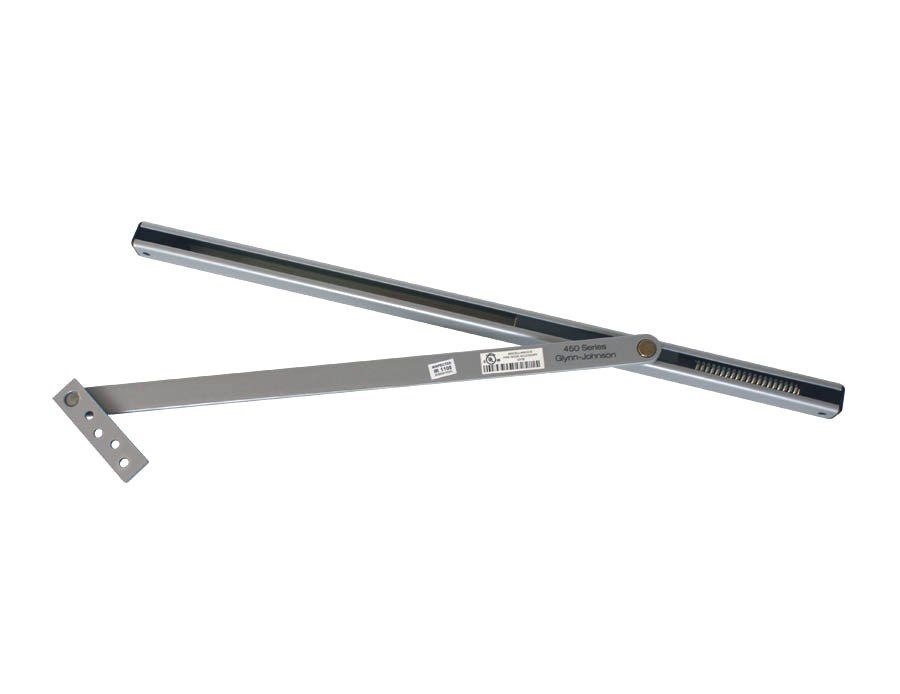

Glynn Johnson 450 Series Door Holders

Description

Glynn Johnson 450 series door holders

Available Friction Hold Open, Hold Open or Stop Only
Friction Hold Open allows multiple hold open points. Friction tension can be adjusted using an allen key
Hold Open allows the door to remain held open at a predetermined point
Stop Only allows an overhead stop when a standard stop cannot be accommodated or is not suitable and no hold open function is required
Sizes available – 451 suits doors 457mm – 584mm, 452 suits doors 585mm – 686mm, 453 suits doors 687mm – 838mm, 454 suits doors 839mm – 991mm & 455 suits doors 992mm – 1143mm
Built in Dead-Stop templating can be engaged when an obstruction is situated at an angle of 110º or less.
Dead-Stop Templating is recommended for applications where a wall or similar obstruction is in place at an opening angle of 110º or less (i.e., doors that open back-to-back). Dead-Stop Templating can be applied to Hold-Open, Stop-Only and Friction models
An additional option on the 450 Series is the Angle Jamb Bracket for hinge-side or flush transom mounting. The angle jamb bracket affixes to the standard jamb bracket. If ordered with the overhead holder add suffix J. If needed separately order 450J – Finish
Recommended for medium duty situations on internal doors
The 450 series can be used in conjunction with almost all surface mounted overhead door closers, please enquire for any further clarification
Can be used with doors hung using full mortice hinges, offset and centre hung pivots

Variations:

Type	Hold Open, Friction Hold Open, Stop Only
Brand	Relcross
Door Size	457mm – 584mm, 585mm – 686mm, 687mm – 838mm, 839mm – 991mm, 992mm – 1143mm
