Description

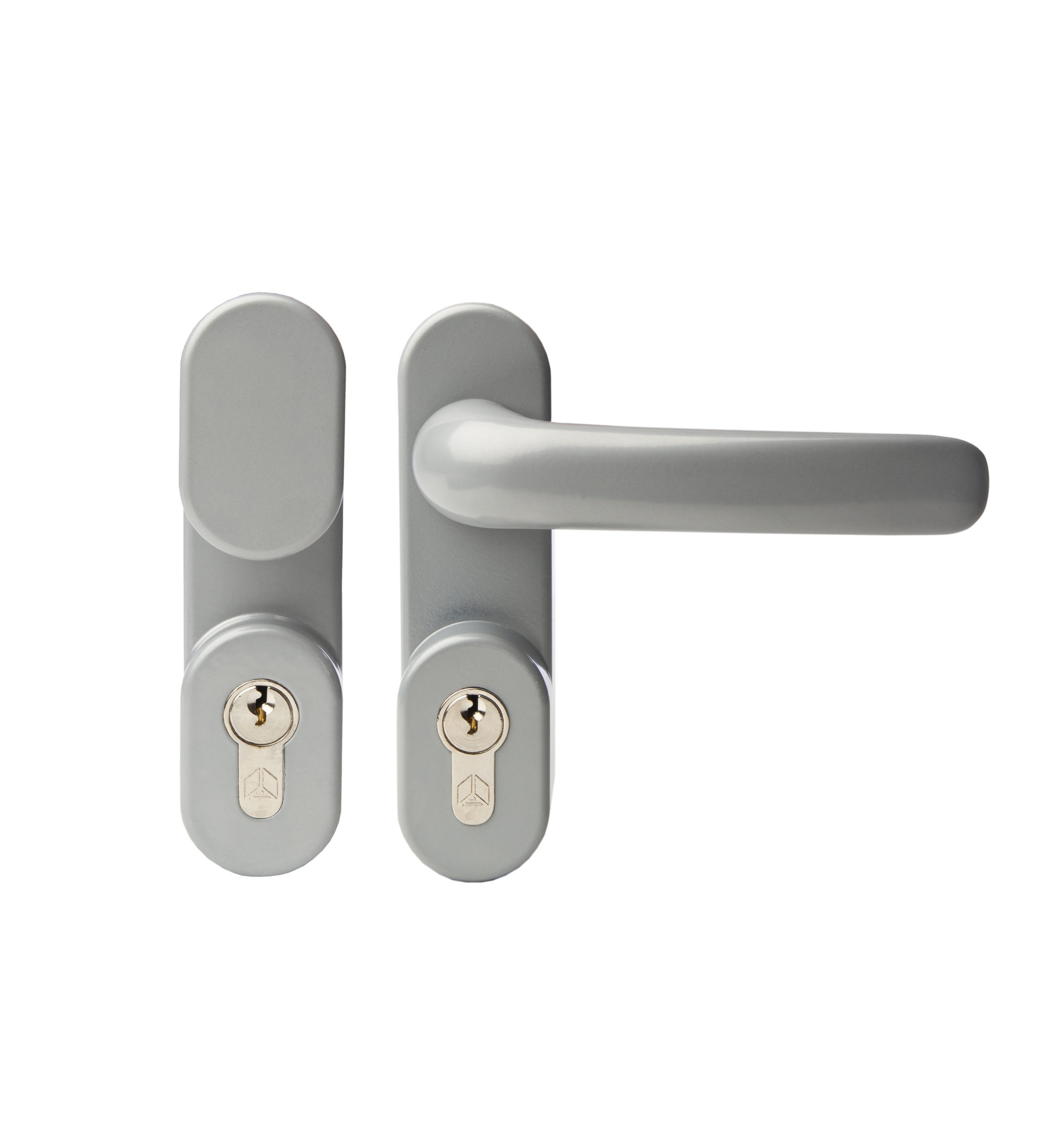

Strand Hardware outside access devices for use with Strand Modular touch bars, push bars and push pads
- Lever (PH361) or Knob (PH371) operated versions available
- The internal panic or emergency exit hardware always overrides the outside locking status to allow safe egress
- Supplied complete with 40mm Euro Profile half cylinder
- The device bolts through the door and allows the outside access device and the internal panic mechanism to bolt together securely
- Suitable for doors up to 100mm thick
- Key retaining (02) or non key retaining (01) versions available
- Key retaining version – key can only be withdrawn once the unit is re-locked! Ideal for scenario where key holder gains access and the door needs to be re-secured immediately after use) – If unsure which option is required, see product PH365 which offers both option (selectable during installation)
- The following finishes available. Silver (EPS) 20, Black (EPB) 01, White (EPW) 25 & Satin Stainless Plated (SSSP) 44. Other plated finishes and RAL colours are available upon request, please enquire for pricing.
Variations:
Lever Operated Non Key Retaining: PH361-01-20, PH361-01-01, PH361-01-25, PH361-01-44
Lever Operated Key Retaining: PH361-02-20, PH361-02-01, PH361-02-25, PH361-02-44
Knob Operated Non Key Retaining: PH371-01-20, PH371-01-01, PH371-01-25, PH371-01-44
Knob Operated Key Retaining: PH371-02-20, PH371-02-01, PH371-02-25, PH371-02-44
